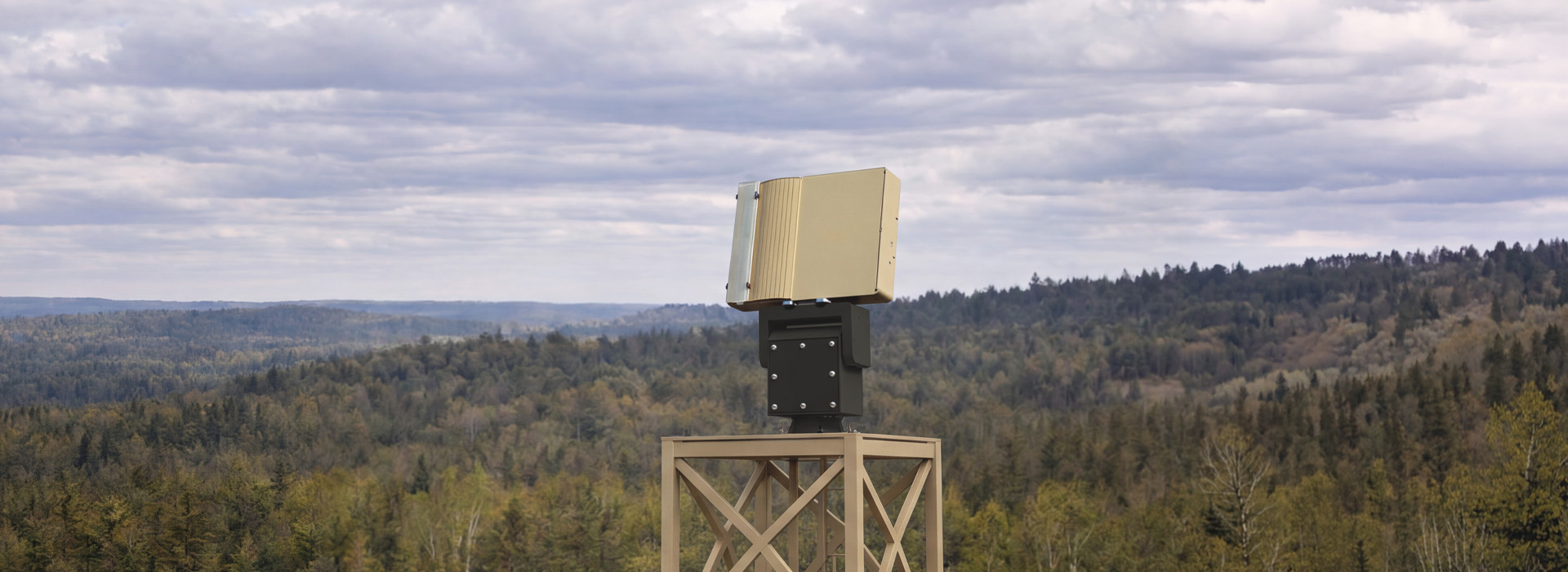

Ranger® R10-3DX

The Ranger R10-3DX redefines mid-range radar capabilities for counter drone (C-UAS) and ISR missions on fixed installations or mobile platforms. The R10-3DX detects micro UAS targets at more than 3 km, pedestrians more than 6km, and more than 14km for vehicles. Using Digital Beam forming technology, one panel continuously covers a wide area of 90° azimuth and up to 60° in elevation, and with 4 panels, a full 360° is achieved at 2 or 4 Hz refresh rate, ensuring potential threats can be detected at greater success by producing less room to evade. The R10-3DX is compatible with either external IMU or on-board sensors, with a rugged and compact design rated to MIL-STD 810 and MIL-STD-461 specifications, making it a robust option for a variety of missions. The system offers essential threat detection capability with low SWaP and a fast refresh rate, and AI-based algorithm for reliable threat classification during critical moments.
